A retail operations director installs screens across 60 stores. Twelve months later, the board asks a simple question: what did we get back?
The team pulls together uptime logs, a few anecdotal reports from store managers, and a spreadsheet of total impressions. None of it connects to revenue. The screens are still running, but no one can say whether they are working. This is the most common failure mode in digital signage measurement, not that the data doesn't exist, but that the wrong data was collected from the start.
Why Impressions Are Not a Business Metric
Proof of play (the log confirming that content ran on a screen at a specific time) answers a compliance question: did the content appear? It does not answer a business question: did it change behaviour?
The same applies to raw impression counts and average dwell time. These metrics describe what the screen did. They say nothing about what the viewer did next.
Digital signage ROI only becomes measurable when you connect screen activity to downstream actions: a product picked up, a service enquiry made, a queue completed, a cross-sell accepted at a counter. The gap between "content ran" and "outcome occurred" is where most measurement frameworks fall apart and where platform architecture makes all the difference.
The Three Layers of KPIs That Build Toward Revenue
Measuring digital signage ROI requires three distinct layers of data, each feeding into the next.
Attention metrics sit at the top. They tell you whether the content reached anyone: verified audience counts from camera-based sensors, average dwell time in front of a display and attention rate, the percentage of passers-by who actually looked at the screen. Without this layer, you cannot distinguish a high-traffic screen from an ignored one.
Engagement metrics sit in the middle. For interactive installations, this includes touch interactions, QR code scans, and mobile handoffs, moments when a viewer moves from passive observation to active response. For non-interactive screens, engagement proxies include directional movement toward a promoted product or service area, measured via foot traffic sensors correlated with content schedules.
Conversion metrics sit at the bottom and are the only ones that directly answer the ROI question. Sales uplift on promoted products during campaign windows, service enquiry rates at staffed counters or screen-promoted offer acceptance rates during face-to-face conversations.
The key discipline here is correlation: running the same content in some locations and not others, then comparing outcomes. Without a control group or a before/after baseline, any revenue figure attributed to signage is speculation.
How Automation Changes What You Can Measure
Static content management creates a measurement problem that rarely gets acknowledged.
When content is updated manually (someone redesigns a slide, uploads it, deploys it) there is no reliable record of what ran, when, and in response to what condition. Proof of play logs exist, but they cannot tell you whether the content was current, whether it reflected the right price or the right promotion, or whether it was relevant to the audience in front of the screen at that moment. Data-driven automation changes this entirely. When a screen updates automatically from a live data source - a product feed, a CRM segment, a real-time queue length - every content state is timestamped and traceable. You know exactly what message ran at 14:30 on a Tuesday in branch 23, and you can cross-reference it against transaction data from the same hour.
This is the infrastructure that makes digital signage ROI calculable rather than estimated. Across a network of 40 bank branches, integrating queue management and CRM-triggered content with display scheduling produced a 67% increase in conversions on automatically suggested products, because the right offer appeared at the right moment, and the data trail confirmed exactly when and where it happened.
Mobile Handoff: Closing the Attribution Gap
One of the most persistent challenges in digital signage ROI is attribution: a customer sees a promotion on screen, walks to a shelf, and buys the product. How do you know the screen influenced the decision?

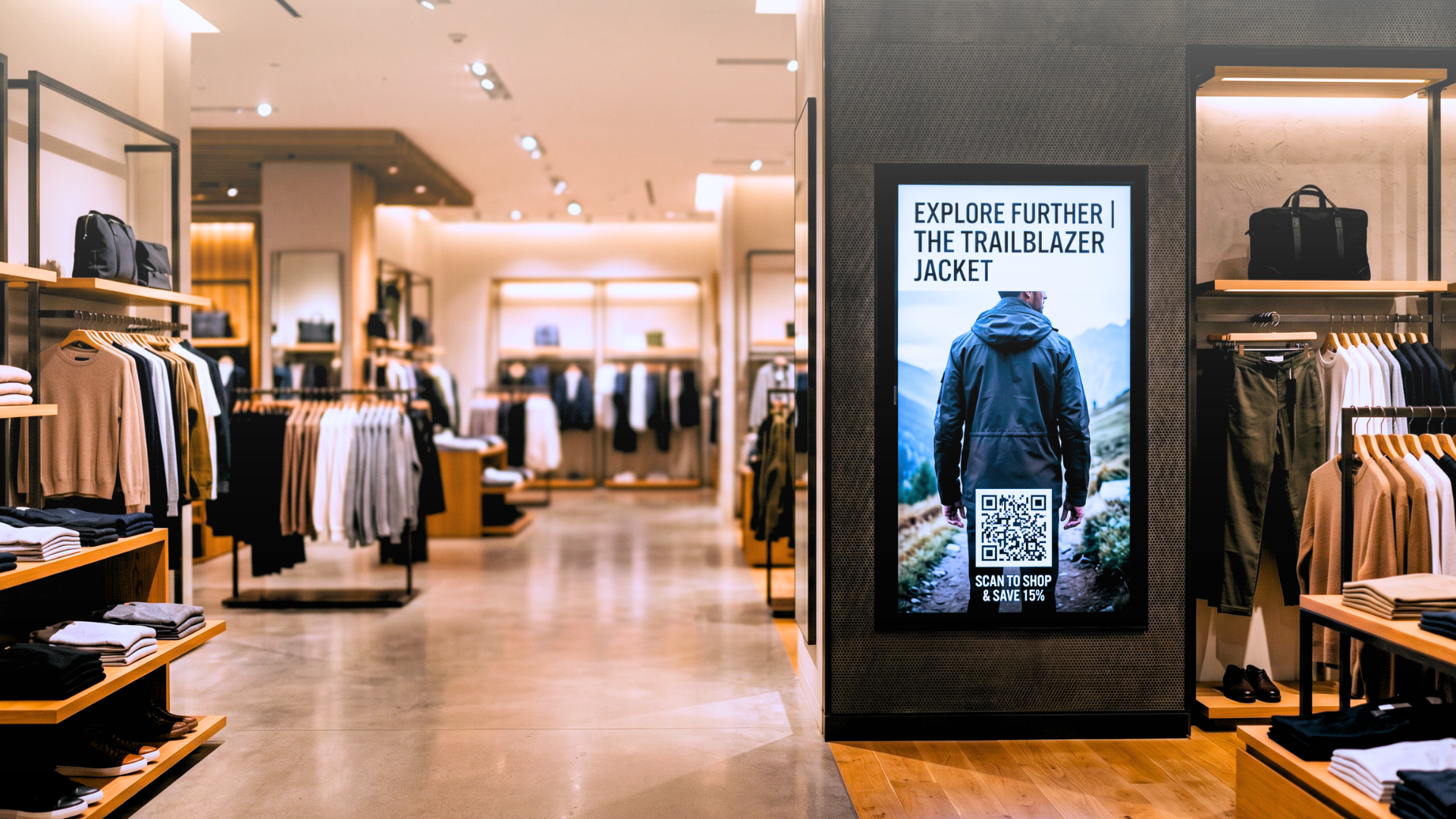

Mobile integration provides the clearest answer available without requiring the customer to self-report. When a screen presents a QR code linked to a specific campaign, every scan creates a trackable event. If that scan leads to a mobile checkout, a voucher redemption, or a service booking, the attribution chain is complete: screen, content version, time, location, and downstream action are all connected.
This is where a platform built for orchestration (rather than playlist management) becomes operationally significant. Mobile handoff requires the screen, the CMS, and the downstream system (e-commerce, booking tool, loyalty programme) to share data in real time. When those systems are siloed, the attribution gap stays open. When they are integrated, every interaction becomes a data point.
Building a Measurement Framework Before You Deploy
The most effective digital signage measurement programmes are designed before the first screen goes live, not retrofitted after deployment.
This means defining three things upfront.
1. The business outcome you are trying to move. Not "increase brand awareness" - a figure that cannot be tied to revenue - but something specific: average transaction value in a promoted category, service enquiry rate at a specific counter, or queue abandonment rate during peak hours.
2. The data sources that will confirm movement. Point-of-sale data, CRM records, booking system logs, or sensor feeds from the physical environment. If the data source doesn't exist or isn't accessible, the KPI cannot be measured.
3. The content logic that connects screen behaviour to the outcome. If the goal is to increase uptake of a specific service, what content triggers that conversation? At what time of day? In response to what audience signal? This logic must be built into the content rules, not left to chance.
Networks that skip this design step often find themselves twelve months later in the same position as the operations director in the opening example: screens running, data existing, but no line connecting one to the other.
When the Numbers Are Worth Presenting to Leadership
Digital signage ROI reporting becomes credible to a finance or executive audience when it meets two conditions: the methodology is reproducible, and the figures are conservative. Reproducible means the same measurement approach - same control conditions, same data sources, same attribution window - can be applied across campaigns and locations. If the method changes every quarter, results are not comparable and cannot support investment decisions.
Conservative means you report only what the data directly supports. If screen-attributed sales uplift is 12% in promoted locations versus control locations, report 12%. Do not add estimated brand value, assumed lifetime value, or qualitative manager assessments. A defensible 12% is worth more in a boardroom than an optimistic 40% that cannot be replicated.
Platforms that export structured analytics data - by screen, by content version, by time window, by location -make this kind of reporting possible without manual aggregation. If your current system requires a spreadsheet to be built by hand every time someone asks for performance data, the measurement cost is itself an argument for switching.
